#include <GenericOptimizer.hpp>

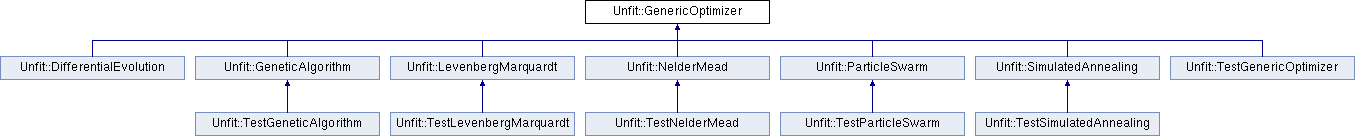

Inheritance diagram for Unfit::GenericOptimizer:

Public Member Functions
	GenericOptimizer ()

virtual	~GenericOptimizer ()

virtual int	FindMin (GenericCostFunction &cost_function, std::vector< double > &coordinates)=0

virtual void	Reset ()=0

void	ResetGenericOptimizer ()

virtual double	GetCost (std::size_t index=0) const noexcept

virtual bool	GetIsPopulationBased () const noexcept

virtual std::size_t	GetNumberOfIterations () const noexcept

virtual std::size_t	GetNumberOfFunctionEvaluations () const noexcept

virtual std::vector< std::vector< double > >	GetPopulation () const

virtual std::vector< double >	GetSolution (std::size_t index=0) const

virtual void	SetPopulation (const std::vector< std::vector< double >> &population)

Public Attributes
Unfit::Bounds	bounds

Unfit::Options	options

Protected Member Functions
virtual bool	CalculateCost (GenericCostFunction &CostFunction, std::vector< double > &x)

void	GeneratePopulation (GenericCostFunction &CostFunction, std::size_t dimensions)

void	GenerateRandomEngines ()

virtual bool	IsConverged (const std::vector< double > &best_member, std::size_t truncated_index=0) const
	Checks to see if the population has converged. More...

virtual void	PrintInitialOutput (double best_cost) const

virtual void	PrintIterationOutput (double best_cost) const

virtual void	PrintFinalOutput () const

virtual void	SortPopulation () noexcept

Protected Attributes
std::vector< std::vector< double > >	population_

std::vector< std::mt19937 >	random_engines_

std::atomic< std::size_t >	function_evaluations_

std::atomic< std::size_t >	iterations_

bool	is_population_based_

Private Member Functions
std::vector< double >	GeneratePopulationMember (GenericCostFunction &CostFunction, std::vector< std::uniform_real_distribution< double >> &distributions, std::size_t dimensions, std::size_t mem)

Detailed Description

A generic base class for optimization methods to derive from. This defines the FindMin interface through which the optimization is performed, but is not a pure interface class as it may also contains common features for the optimization algorithms.

Constructor & Destructor Documentation

◆ GenericOptimizer()

Unfit::GenericOptimizer::GenericOptimizer ( )

Default constructor. Here we override the generated one as we need to initialize the member variables to something sensible.

◆ ~GenericOptimizer()

Unfit::GenericOptimizer::~GenericOptimizer ( )

virtual

As we are deriving from this class, the destructor should be virtual. In this case (at present) we have nothing that will not be deleted when the class goes out of scope so an empty destructor method is fine.

Member Function Documentation

◆ CalculateCost()

bool Unfit::GenericOptimizer::CalculateCost	(	GenericCostFunction &	CostFunction,
		std::vector< double > &	x
	)

protectedvirtual

This method calls a cost function that has been derived from GenericCostFunction with a specified set of parameters. GenericCostFunction returns a vector of residuals (as is needed by the LevenbergMarquardt algorithm) and this function uses a sum-of-squared residuals approach to convert the vector of residuals into a single cost value. This method also increments the number of function evaluations.

Parameters

CostFunction	The cost function to be evaluated
x	The parameters with which the cost function will be evaluated

Returns: True if the cost is finite, otherwise false

◆ FindMin()

virtual int Unfit::GenericOptimizer::FindMin	(	GenericCostFunction &	cost_function,
		std::vector< double > &	coordinates
	)

pure virtual

All derived classes must implement the FindMin method. This is the main method that should be called to perform an optimization.

Parameters

cost_function	The cost function to be minimized
coordinates	On entry this is the initial guess of the coordinates that need fitting. On exit this is overwritten by the final result from the fitting procedure.

Returns: An integer error code, which should be zero to indicate success

Implemented in Unfit::ParticleSwarm, Unfit::SimulatedAnnealing, Unfit::NelderMead, Unfit::GeneticAlgorithm, Unfit::DifferentialEvolution, Unfit::LevenbergMarquardt, and Unfit::TestGenericOptimizer.

◆ GeneratePopulation()

void Unfit::GenericOptimizer::GeneratePopulation	(	GenericCostFunction &	CostFunction,
		std::size_t	dimensions
	)

protected

This method creates a population that follows a uniform random distribution between the specified bounds. It is recommended that you set sensible bounds as the defaults are +/- max double, which can make population generation take a very long time. Costs are calculated via the provided cost function and are appended to the end of each population member. Any member that does not compute a valid cost is automatically discarded and regenerated. The population is not sorted within this method.

Parameters

CostFunction	The function used to evaluate the cost of each member
dimensions	The number of dimensions for each member

◆ GeneratePopulationMember()

std::vector< double > Unfit::GenericOptimizer::GeneratePopulationMember	(	GenericCostFunction &	CostFunction,
		std::vector< std::uniform_real_distribution< double >> &	distributions,
		std::size_t	dimensions,
		std::size_t	mem
	)

private

This method generates a single population member for the GeneratePopulation method. Each parameter in the member is generated between the specified bounds (with the default bounds being +/- max(double), and each has its own random number generator (to allow parallel execution)

Parameters

CostFunction	The cost function to be optimised
distributions	A uniform distribution with the correct bounds for each dimension
dimensions	The number of dimensions in the generated member
mem	The index of the population member to be generated

Returns: A vector containing the new population member

◆ GenerateRandomEngines()

void Unfit::GenericOptimizer::GenerateRandomEngines ( )

protected

This method generates set of random number engines (one for each member of the population) based on a random seed. The random seed provided in the options.SetRandomSeed() is then used to generate random seeds for each of the engines. There needs to be one per member so all of the member calculations can be done in parallel.

◆ GetCost()

double Unfit::GenericOptimizer::GetCost ( std::size_t index = 0 ) const

virtualnoexcept

This method which returns the cost of a particular member of the current solution. For optimizers where more than one cost is stored the optional parameter can be used to choose which cost to get. The costs are not guaranteed to be sorted. If an invalid member index is passed in as an argument the returned cost will be infinity.

DifferentialEvolution: Members are unsorted
GeneticAlgorithm: Members are sorted (best = 0, worst = n)
LevenbergMarquardt: Only one cost is stored (index = 0)
NelderMead: Members are sorted (best = 0, worst = n)

Parameters

index The index of the member whose cost will be returned

Returns: The cost of the solution of the specified member

◆ GetIsPopulationBased()

bool Unfit::GenericOptimizer::GetIsPopulationBased ( ) const

virtualnoexcept

This method returns whether or not the current optimization method is population based (e.g. Differential Evolution) or not (e.g Nelder-Mead).

Returns: True if the optimizer is population based, otherwise false

◆ GetNumberOfFunctionEvaluations()

std::size_t Unfit::GenericOptimizer::GetNumberOfFunctionEvaluations ( ) const

virtualnoexcept

This method returns the number of function evaluations the optimizer has performed up to this point.

Returns: The number of function evaluations

◆ GetNumberOfIterations()

std::size_t Unfit::GenericOptimizer::GetNumberOfIterations ( ) const

virtualnoexcept

This method returns the number of iterations the optimizer has gone through up to this point.

Returns: The number of iterations

◆ GetPopulation()

std::vector< std::vector< double > > Unfit::GenericOptimizer::GetPopulation ( ) const

virtual

This method returns the stored population with the costs appended to each member. There is no guarantee that the population will be sorted.

Returns: The population

◆ GetSolution()

std::vector< double > Unfit::GenericOptimizer::GetSolution ( std::size_t index = 0 ) const

virtual

This method returns a member of the current solution. For optimizers where more than one solution is stored (e.g. a population) the optional parameter can be used to choose which solution to get. The solutions are not guaranteed to be sorted. If an invalid member index is passed in as an argument the returned member will be empty. The cost is not appended to the end of the member that is returned.

DifferentialEvolution: Members are unsorted
GeneticAlgorithm: Members are sorted (best = 0, worst = n)
LevenbergMarquardt: Only one member is stored (index = 0)
NelderMead: Members are sorted (best = 0, worst = n)

Parameters

index The index of the member to be returned

Returns: The specified member (sans cost)

◆ IsConverged()

bool Unfit::GenericOptimizer::IsConverged	(	const std::vector< double > &	best_member,
		std::size_t	truncated_index = `0`
	)		const

protectedvirtual

Checks to see if the population has converged.

This method checks to see if the population has converged. In particular, it checks three things - the best cost, the spread of costs in the population, and the spread of the population coordinates in each dimension. In order to be considered converged, either the best cost has to be less than the cost tolerance, or BOTH the cost and the geometry have to be converged to the same point. Details on the second case are given below.

Cost: Uses options.GetCostTolerance(). If the best cost is < 1.0 then the difference between the best and worst costs must be less than the cost tolerance. If the best cost is > 1.0 then the difference between the best and worst costs must be less than the best_cost*cost_tolerance.

Geometry: Uses options.GetGeometricTolerance(). In each dimension, if the position with the best cost is < 1.0 then the difference between all member locations and the best member location must be less than the geometric tolerance. If the position with the best cost (again separately for each dimension) is > 1.0 then the difference between the best location and all other member locations must be less than best_location*geometric_tolerance.

Parameters

best_member	The best member of the current population (with cost)
truncated_index	This parameter should be used if you only want to check part of the population for convergence. An example of this is GeneticAlgorithm which only checks the surviving members of the population for convergence. If you have a population 0..7, and you want to check only members 0,1,2,3, then truncated_index will 3. A truncated_index of zero will check the whole population.

Returns: true if both convergence criteria are met, otherwise false

◆ PrintFinalOutput()

void Unfit::GenericOptimizer::PrintFinalOutput ( ) const

protectedvirtual

Upon completion, this method prints the final population if the output level has set to be greater than two.

◆ PrintInitialOutput()

void Unfit::GenericOptimizer::PrintInitialOutput ( double best_cost ) const

protectedvirtual

Prints the column headers relating to iteration by iteration output to the screen if the output level has been set to be >= 1.

Parameters

best_cost The best cost after the initial setup

Reimplemented in Unfit::NelderMead.

◆ PrintIterationOutput()

void Unfit::GenericOptimizer::PrintIterationOutput ( double best_cost ) const

protectedvirtual

At each iteration, prints nothing if the output level is zero, the iteration number if the output level is one, and the iteration number plus the number of function evaluations and the best cost if the output level is greater than one.

Parameters

best_cost The best cost after the latest iteration

Reimplemented in Unfit::NelderMead.

◆ Reset()

virtual void Unfit::GenericOptimizer::Reset ( )

pure virtual

Each optimization class must implement a Reset method to set all of their parameters back to their default values.

Implemented in Unfit::ParticleSwarm, Unfit::SimulatedAnnealing, Unfit::NelderMead, Unfit::GeneticAlgorithm, Unfit::DifferentialEvolution, Unfit::LevenbergMarquardt, and Unfit::TestGenericOptimizer.

◆ ResetGenericOptimizer()

void Unfit::GenericOptimizer::ResetGenericOptimizer ( )

This method resets all of the GenericOptimizer parameters back to their default values and should therefore be called from the Reset method of all optimizers deriving from this class.

◆ SetPopulation()

void Unfit::GenericOptimizer::SetPopulation ( const std::vector< std::vector< double >> & population )

virtual

This method allows the user to set the population directly, rather than having it generated internally. Different methods will have a different minimum population size. In NelderMead, for example, the population size must be exactly one more than your number of dimensions (to get a simplex). Here the population that is passed in is not tested. Each optimizer will implement its own checks to make sure the population that is passed in is valid. Note also that the population should be passed in with the costs appended.

Parameters

population The population to be used (with costs appended)

◆ SortPopulation()

void Unfit::GenericOptimizer::SortPopulation ( )

protectedvirtualnoexcept

This method sorts the members of the population into ascending order by their cost, such that the first member (index = 0) contains the lowest cost and the last member contains the highest cost.

Member Data Documentation

◆ bounds

Unfit::Bounds Unfit::GenericOptimizer::bounds

Use this object to set and manipulate bounds for your problem, if any.

◆ function_evaluations_

std::atomic<std::size_t> Unfit::GenericOptimizer::function_evaluations_

protected

Variable to store the number of function evaluations

◆ is_population_based_

bool Unfit::GenericOptimizer::is_population_based_

protected

Variable to store if the optimizer is population based

◆ iterations_

std::atomic<std::size_t> Unfit::GenericOptimizer::iterations_

protected

Variable to store the current number of iterations

◆ options

Unfit::Options Unfit::GenericOptimizer::options

Use this object to set and manipulate the optimization options, such as the maximum number of iterations, tolerances and output levels.

◆ population_

std::vector<std::vector<double> > Unfit::GenericOptimizer::population_

protected

A vector of population member vectors. The cost of a given member is appended to that member, so the size will be the number of dimensions in the problem + 1.

◆ random_engines_

std::vector<std::mt19937> Unfit::GenericOptimizer::random_engines_

protected

A vector containing one random engine for each member of the population

The documentation for this class was generated from the following files:

include/GenericOptimizer.hpp
src/GenericOptimizer.cpp
